FEATURES:
- Touch Screen without buttons make setting more easily.
- This is the WNRF FMT series 5 generation product,All-digital technologies DSP+PLL, better sound quality.
- Upgrade frequency step to 10Khz.
- Exquisite craftsmanship,Standard 19 inches, 2U whole aluminium alloy cabinet. Wiredrawing and oxidation makes surface bright, clean and elegant.
- Big LCD display all the parameters in real time. displays working frequency, volume, FETMOS temperature, forward power and SWR.
- Provided with the series of protection function, own active protection and raise alarm prompts once meet any trouble while working.
- Accurate operating index and perfect protection measures make you are more aware of the operating status of your machine.
- Easily installation and simply operations.
- High quality and excellent technical performances. AGC circuit to keep the Output Power stability.
- Each machine has been examined strictly by a series of quality inspection and function test to guarantee best operating function.
Technical Specifications:
- Frequency Range: 87.5MHz~108.0MHz, Setting step 10KHz
- AC power source: AC110V-250V ,50-60Hz, single phase
- Power Consumption: 1000VA
- Output Power:0~600W, Setting step 1W
- Output Load Impedance: 50Ω

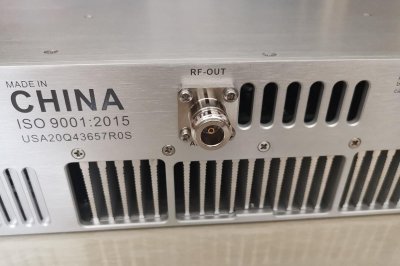

- RF Output Interface: L16 / N female
- Output power deviation: <± 10%
- Output power stability: <± 3%
- SFDR: < -70dB
- High Harmonic: < -65dB
- Residual Amplitude Modulation: < -50dB
- Carrier Frequency Precision: ±200Hz
- Analog Audio Input: -12dBm~+8dBm
- Audio Input Level Gain: -6dB~+6dB, step 1dB
- Audio Input Impedance: 600Ω, Balance, XLR
- Pre-emphasis : 0μS, 50μS, 75μS (optional)
- AUX Input: Unbalance (optional) BNC connector
- Audio Response: ±0.1dB (30Hz~15000Hz)
- LR channel level difference: <0.1dB (100% modulation)
- Stereo Separation: ≥50dB 30Hz ~ 15000Hz
- Stereo S/N ratio: ≥70dB 1KHz, 100% modulation
- Distortion: <0.1% 30Hz~15000Hz
- Modulation: FM,±75KHz peak deviation
- Transmission Signal: FM Stereo or Mono
- Tuning Design: Stable PLL Technology +DSP
- Cooling mode: Forced Convection
- Temperature Range: -10℃~+45℃
- Relative humidity: <95%
- Working Altitude: <4500m
- Size: 2U, 19-inch standard, 483mm * 400mm * 89mm
- Shipping Weight: 12KG
PACKAGE INCLUDES:
- FM Transmitter *1
- American standard power cord *1
