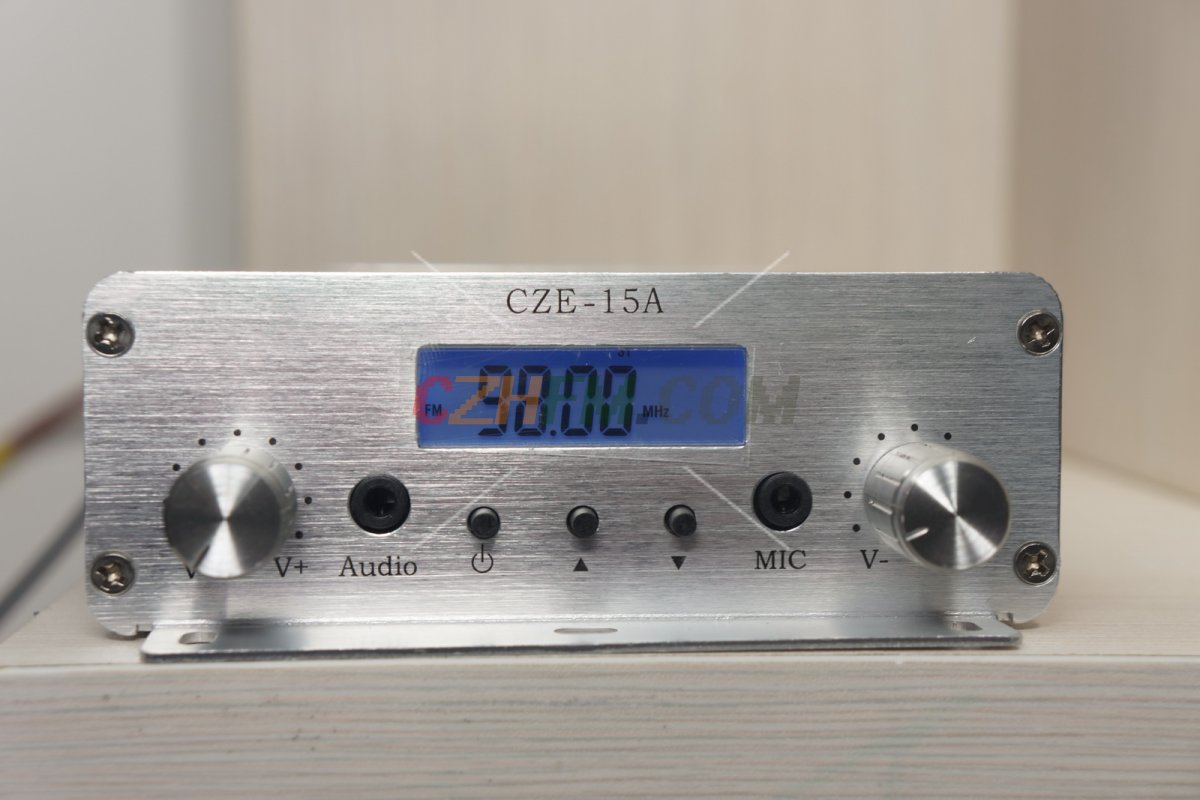

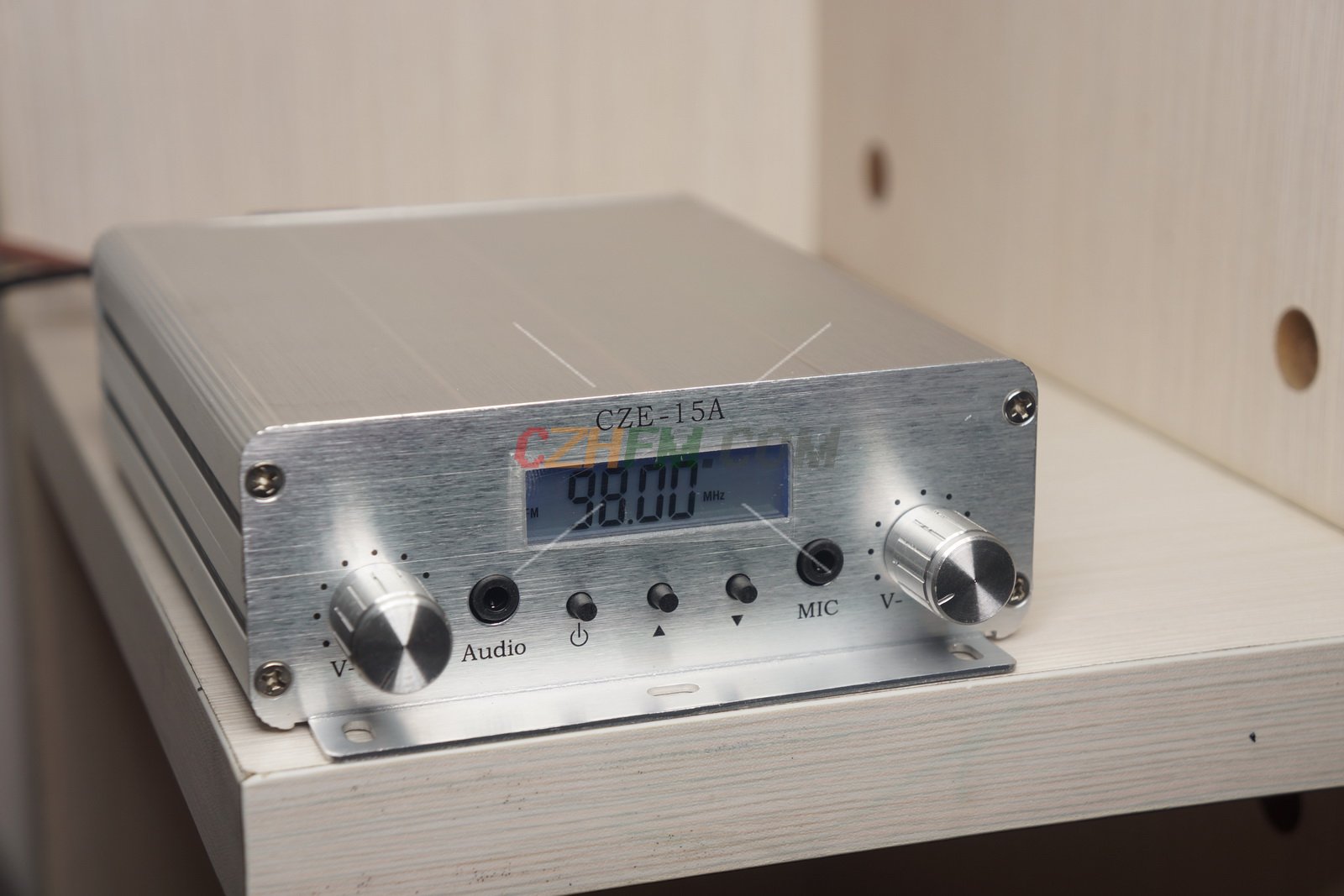

15Watt Stereo FM Transmitter [CZE-15A] + Power Supply + Antenna

Package included:

• CZE-15A 15Watt 88-108Mhz fm Transmitter  x1

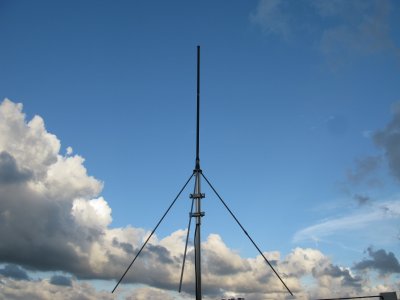

• AGP All Aluminum Quarter wavelength New GP Antenna
• 100-240V Power supply
• Audio cable

Specification:

• Frequency range: 88MHz ~ 108 MHz
• Tuning Step: 100kHz /1Mhz
• Transmit Power: 15Watts ±10%
• Stability of Frequency: ±0ppm（-10℃~+50℃）
• Ripple or harmonic waves: <= -60dB
• Modulate Frequency error:<=75KHz（100%）
• Freq. Response: 100~15000Hz
• Antenna Connector: TNC type
• Output Impedance: 50 ohm
• Audio Input Connector: 3.5mm headphone connector
• MIC Input Connector: 3.5mm headphone connector
• Power Supply: 12V DC (4A)

The transmission range depends on many factors. The true distance is based on the sensitivity of the receiver, antenna of the receiver, and the building and other obstructions, which are between the transmitter and receiver. And the distance will much more in countryside.

ATTENTION: Never power on the transmitter when an antenna is not connected!!!
